Description

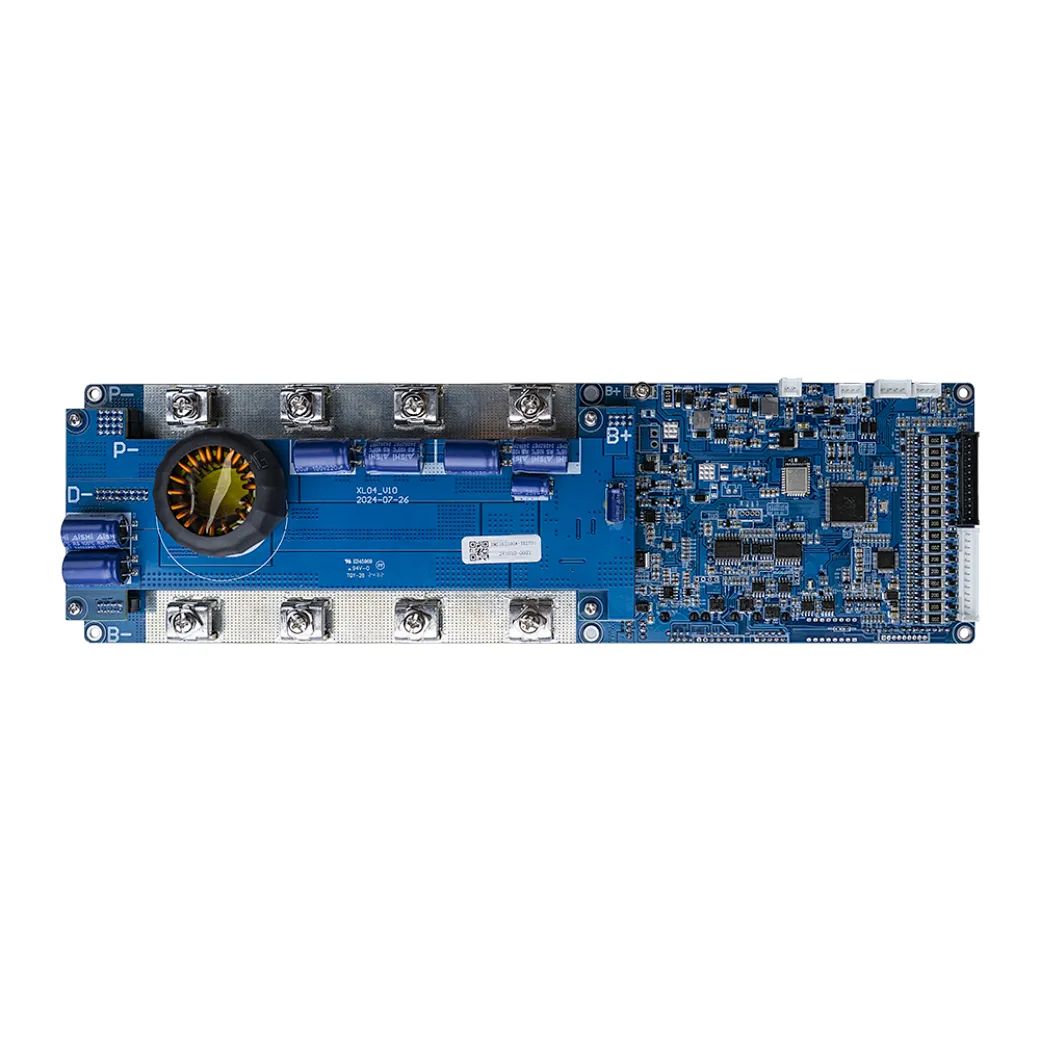

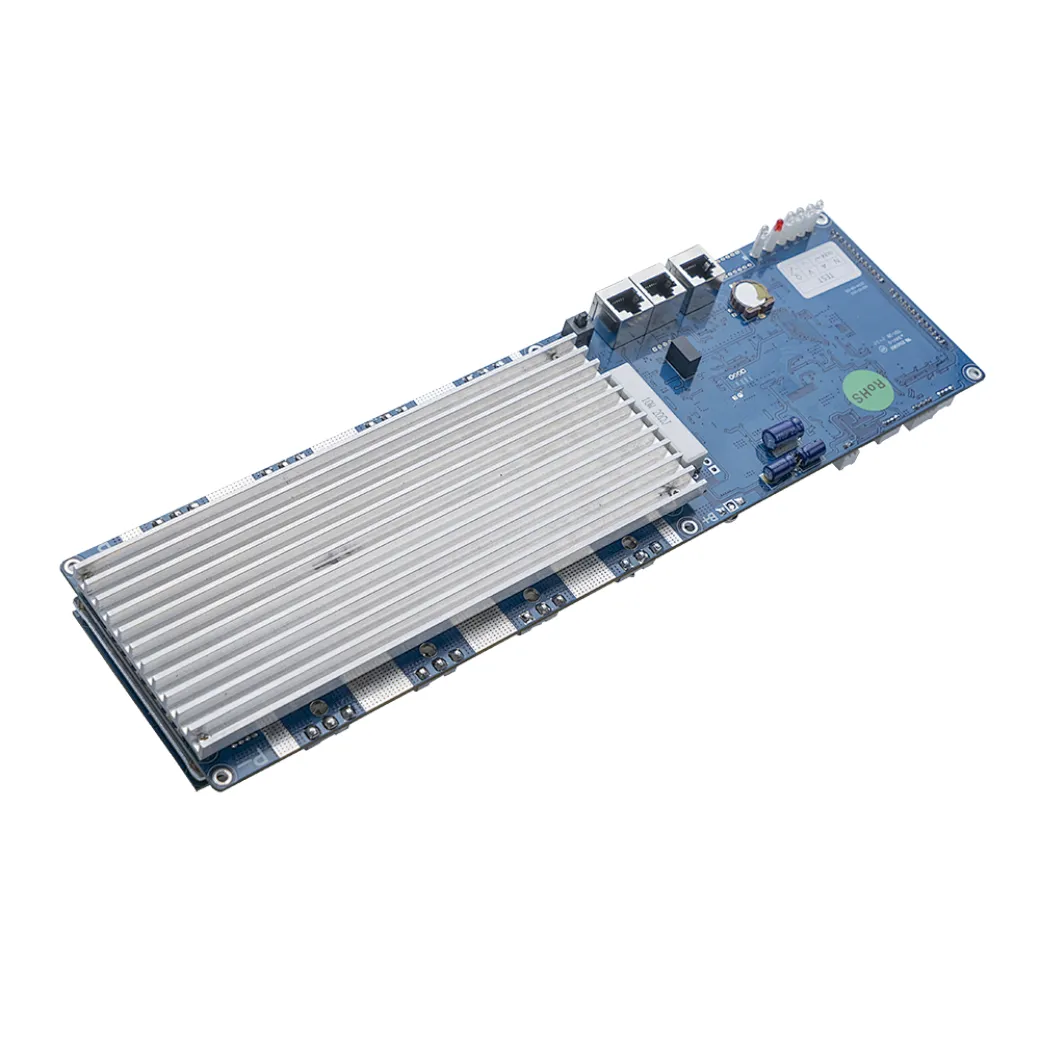

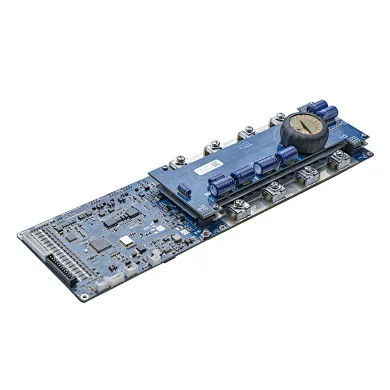

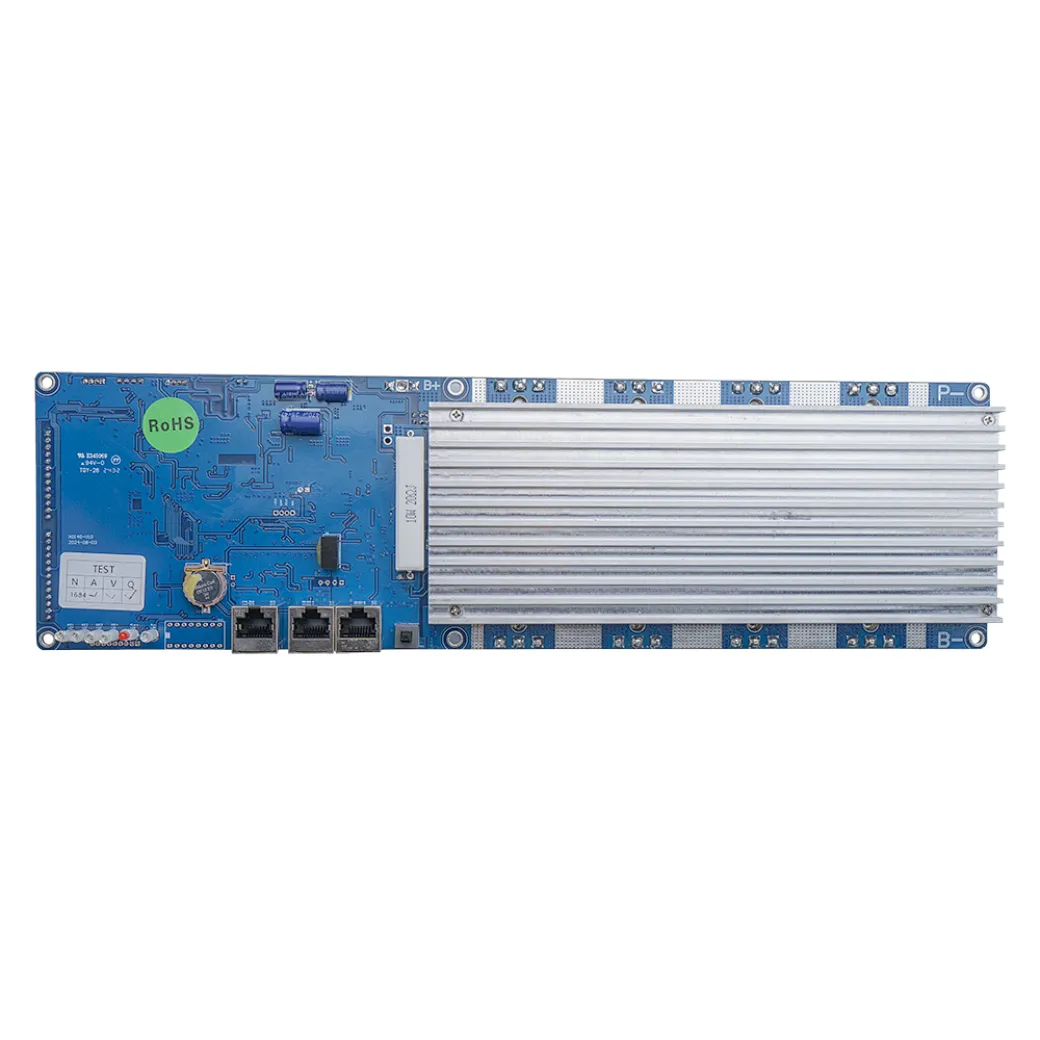

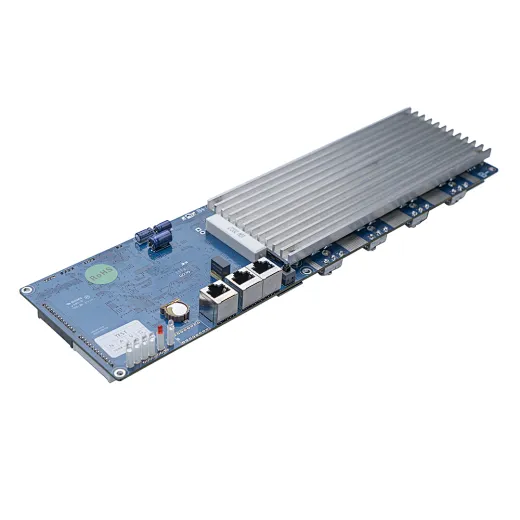

This Seplos 16s 300a BMS has integrated communication ports and status lights on one board. It is perfect for the 16S LFP batteries required for 300A current operation.
The battery management system has built-in dry contact connected to an active balancer, which can power on the balancer due to the voltage deviation the BMS has detected.
Seplos BMS 3.0 and BMS 2.0 can not be in parallel due to different roots and do not mix to update the firmware.
Features
- Industrial-grade manufacture
- Pre-charge
- 20A current limitation
- Accurate SOC calculation
- Gap charging
- Independent chip sampling circuits
- Passive balancing
- Bluetooth monitoring
Technical Parameters
Electric Specification
Working Voltage Range：40V(Minimum)～59V(Maximum), 48V(Type)
Charge Voltage Range：48V(Minimum)～60V(Maximum), 54V(Type)
Working Temperature Range：(-20)～70℃, 25℃(Type)
Storage Temperature Range: (-40)～85℃
Ambient Humidity: 10%～85%
Charge-Discharge Current: 300A, 300(Type)
Internal Resistance: <2mΩ
